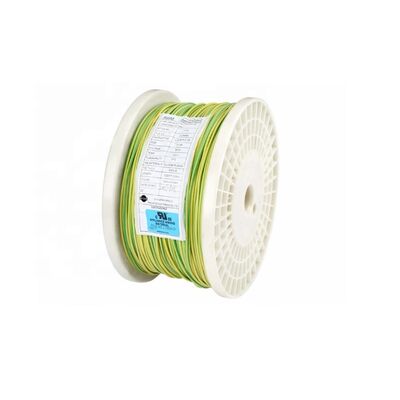

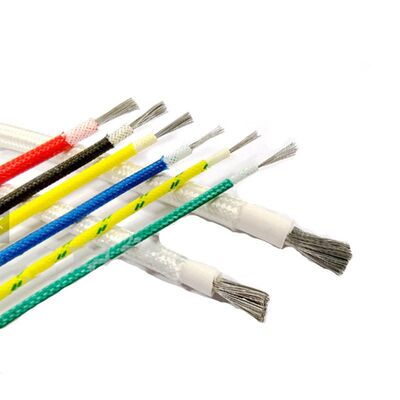

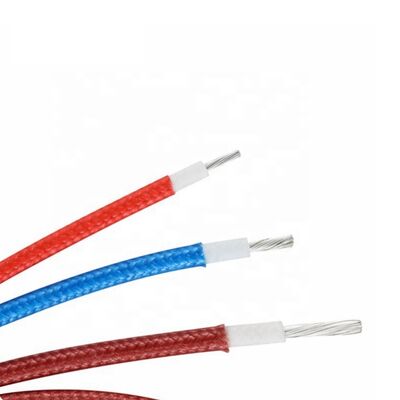

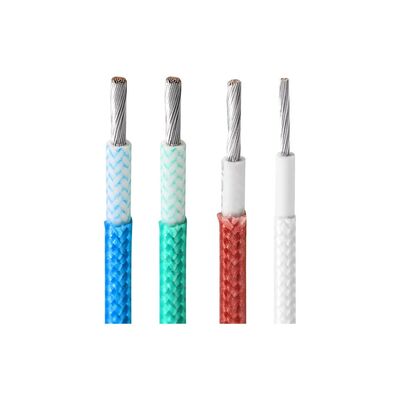

UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor

  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
  • UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor
Lieu d'origine Guangdong, Chine
Nom de marque MYSUN
Certification ROHS/CCC/VDE/CCC/UL
Numéro de modèle ul3122
Quantité de commande min 3050
Prix $0.18-0.65

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Matériau conducteur Cuivre en conserve Diamètre 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 1,25 mm2, 0,5 mm2, 0,75 mm2, 1,5 mm2
Matériau isolant Caoutchouc de silicone Tension nominale 300V
Type de conducteur échoué Température nominale 200c
Longueur d'unité 305 mètres/petit pain Résistance au conducteur maximum 143 Ω/KM (26 AWG), 89,3 Ω/KM (24 AWG), 56,4 Ω/KM (22 AWG), 35,2 Ω/KM (20 AWG), 22,2 Ω/KM (18 AWG), 1
Épaisseur d'isolation 0,60 mm (26 AWG), 0,65 mm (24 AWG) Diamètre du conducteur 0,48 mm (26 AWG), 0,61 mm (24 AWG), 0,77 mm (22 AWG), 0,94 mm (20 AWG), 1,19 mm (18 AWG), 1,49 mm (1
Diamètre global 1,68 mm (26 AWG), 1,81 mm (24 AWG), 1,97 mm (22 AWG), 2,14 mm (20 AWG), 2,39 mm (18 AWG), 2,69 mm (1 Construction du conducteur 7/0,16 mm (26 AWG), 7/0,20 mm (24 AWG), 7/0,254 mm (22 AWG), 7/0,31 mm (20 AWG), 7/0,39 mm (18 AWG),
Dénombrement de brin 7 brins (26-16 AWG), 1 brin (24-16 AWG), 11 brins (24 AWG), 17 brins (22 AWG), 26 brins (20 AWG), 41 Zone de section transversale 0,30 mm², 0,50 mm², 0,75 mm², 1,00 mm², 1,25 mm²
Diamètre du brin 0,16 mm (26-18 AWG), 0,18 mm (0,30-1,25 mm²)
Mettre en évidence

300V Rated Voltage Fiberglass Braided Wire

,

200C High Temperature Silicone Rubber Wire

,

Tinned Copper Conductor UL3122 Wire
Laisser un message
Description de produit

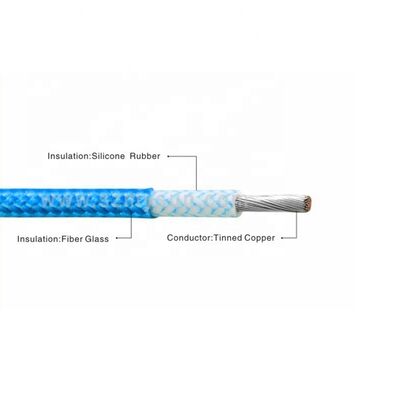

UL3122 300V 200°C Tinned Copper High Temperature Silicone Rubber Fiberglass Braided Motor Wire
Seeking Country Agents for a Win-Win Partnership
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 0
Product Specifications
Conductor Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
267/0.160.480.601.68143305/1000
247/0.200.611.8189.3
227/0.2540.771.9756.4
207/0.310.942.1435.2
187/0.391.192.3922.2
167/0.491.492.6914
241/0.500.500.651.8089.3305/1000
221/0.650.651.9556.4
201/0.810.812.1135.2
181/1.021.022.3222.2
161/1.201.202.5014
2411/0.160.610.601.8189.3305/1000
2217/0.160.761.9656.4
2026/0.160.942.1435.2
1841/0.161.182.3822.2
1626/0.2541.492.6914
0.30mm²12/0.180.710.601.9159.78305/1000
0.50mm²20/0.180.922.1240.1
0.75mm²30/0.181.132.3326.7
1.00mm²40/0.181.312.5120
1.25mm²50/0.181.462.6614.35
Click here to contact us for a competitive quote
Company Profile
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 1 UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 2
Our Products
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 3
Applications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 4
Our Overseas Clients
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 5
Exhibition
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 6
Certifications
UL3122 Fiberglass Braided Wire with 300V Rated Voltage and 200C High Temperature Silicone Rubber Insulation and Tinned Copper Conductor 7
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
