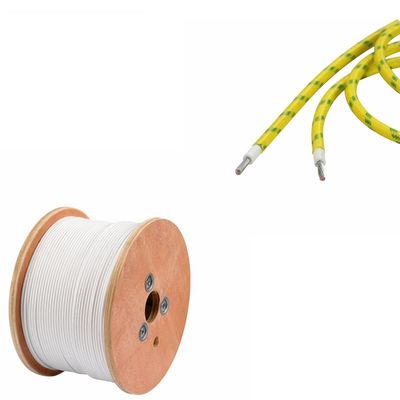

UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use

  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
  • UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
Lieu d'origine Guangdong, Chine
Nom de marque MYSUN
Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Numéro de modèle UL3122-0,3 mm
Quantité de commande min 3050
Prix $0.08-0.16

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Conducteur Cuivre Matériel d'isolation Caoutchouc en silicone
Tension nominale 300 V Type de conducteur échoué
Forme Rond Température maximale 200c
Diamètre du conducteur 0,48-1,49 mm Épaisseur d'isolation 0,60-0,65 mm
Diamètre de fil 1,68-2,69 mm Résistance du conducteur 14.00-143.00 Ω / km
Longueur d'unité 305 mètres/petit pain Taille AWG 16-26
Construction du conducteur 7 / 0,16 à 50 / 0,18 Finition du conducteur Cuivre en conserve
Type d'isolation Caoutchouc
Mettre en évidence

300V Silicone Insulated Wire

,

200C High Temperature Wire

,

18 AWG Silicone Rubber Insulated Wire
Laisser un message
Description de produit

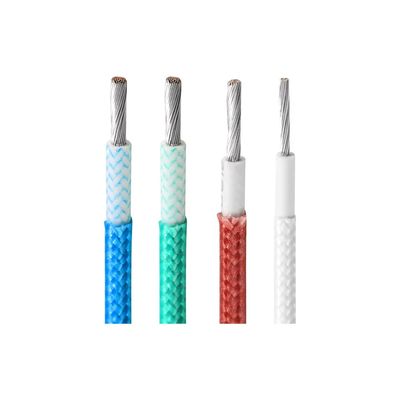

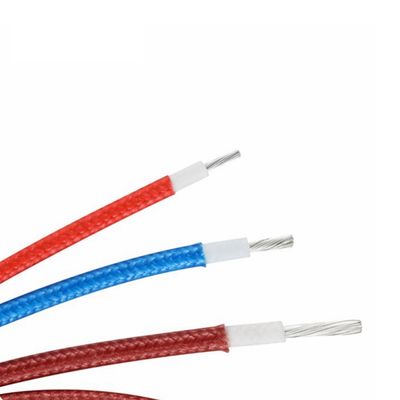

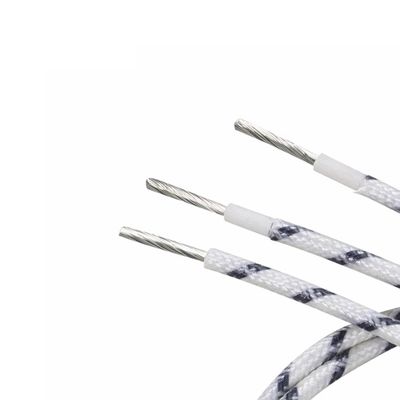

UL3122 Silicone Fiberglass Braided Wire 300V 18 AWG 20 AWG High Temperature Heating Cables
High-quality silicone fiberglass braided wire designed for home appliances and industrial applications requiring high temperature resistance up to 200°C.
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 0 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 1 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 2
Specifications
Conductor Insulation Max. Cond. Resistance (Ω/KM) Unit Length (M)(Ft)
Size (AWG): 26
Construction: 7/0.16
Diameter: 0.48mm		 Nominal Thickness: 0.60mm
Diameter: 1.68mm		 143.00 305/1000
Size (AWG): 24
Construction: 7/0.20
Diameter: 0.61mm		 Nominal Thickness: 0.60mm
Diameter: 1.81mm		 89.30 305/1000
Size (AWG): 22
Construction: 7/0.254
Diameter: 0.77mm		 Nominal Thickness: 0.60mm
Diameter: 1.97mm		 56.40 305/1000
Size (AWG): 20
Construction: 7/0.31
Diameter: 0.94mm		 Nominal Thickness: 0.60mm
Diameter: 2.14mm		 35.20 305/1000
Size (AWG): 18
Construction: 7/0.39
Diameter: 1.19mm		 Nominal Thickness: 0.60mm
Diameter: 2.39mm		 22.20 305/1000
Product Features
  • Place of Origin: China, Guangdong
  • Type: Insulated wire with silicone rubber insulation
  • Application: Home appliances, lighting, heaters, motors, generators, industrial power
  • Conductor Material: Tinned copper (stranded)
  • Color options: Accept customized colors
  • Usage: High temperature electric furnace heating
  • Rated Voltage: 300V
  • Rated Temperature: 200°C
  • Package: 305 meter/roll
  • Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in high temperature wires for home appliances, electronic products, lighting, medical units, and communication equipment. Our products meet UL, CUL, VDE and SGS certifications and comply with ISO9001 international standards.
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 3 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 4 UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 5

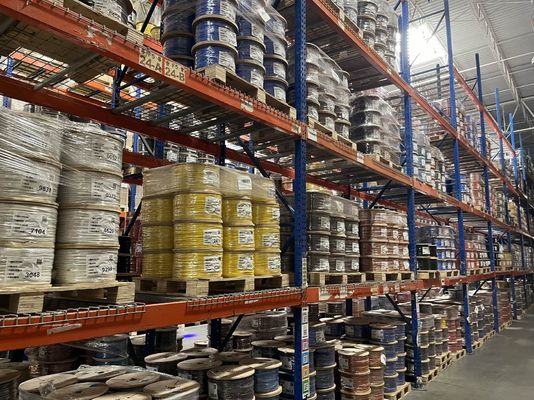

Packing
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 6
Applications
UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use 7
Frequently Asked Questions
How can I contact your company?
We are available via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We observe public holidays during May 1-3, October 1-7, and Chinese New Year.
Do you provide free samples?
Yes, we provide free samples for testing, but buyers must cover all shipping costs.
What are your payment terms?
We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and Paypal.
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
