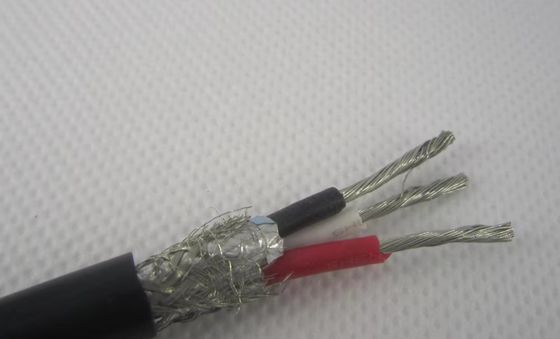

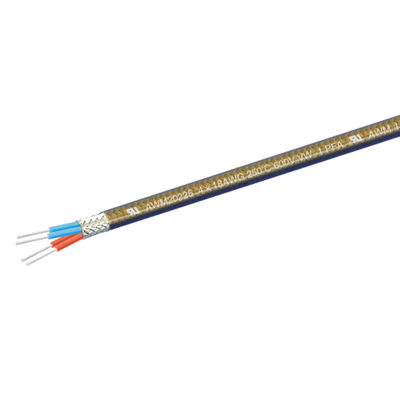

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C

  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
  • UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C
Lieu d'origine Guangdong, Chine
Nom de marque MYSUN
Numéro de modèle UL20225
Quantité de commande min 3050

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Matériau conducteur Cuivre en conserve Options de diamètre 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Matériel d'isolation PFA Tension nominale 600 V
Type de conducteur Solide Forme Rond
Cote de température 250°C Taper Isolé
Matériau de la tresse Cuivre nickelé Épaisseur nominale 0.30mm
Épaisseur de la tresse 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Épaisseur du vêtement extérieur 0.51mm
Construction 19/0,15, 19/0,19, 19/0,235 Construction de tresse 16X6X012, 16X7X012, 24X6X0,12, 24X8X0,12, 24X10X0,12
Options de longueur 305 m/1 000 pieds
Mettre en évidence

Nickel Plated Copper Braid PFA Wire

,

High Temperature PFA Wire

,

UL20225 Multi Core Wire
Laisser un message

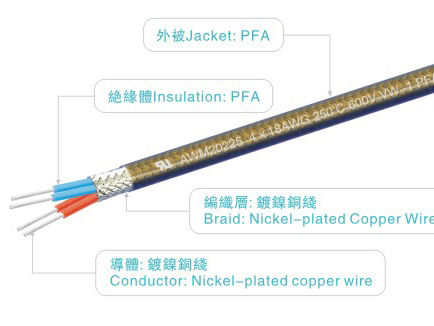

Description de produit
UL20225 PFA Multi Core Wire 600V 250°C Nickel Plated Copper Braid 2X18 - 7X22 High Temperature PFA Wire for UAV Robot
Premium PFA Wire Supplier for Industrial Applications

Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.

UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 0 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 1
Technical Specifications
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter Range (mm)
2X2219/0.150.750.3016X6X0120.504.50-5.50
2X2019/0.190.900.3016X6X0120.505.00-6.00
2X1819/0.2351.170.3016X6X0120.505.30-6.30
3X2219/0.150.750.3016X6X0120.504.50-5.50
3X2019/0.190.900.3016X6X0120.505.00-6.00
3X1819/0.2351.170.3016X7X0120.505.30-6.30
4X2219/0.150.750.3016X7X0120.604.50-6.00
4X2019/0.190.900.3016X7X0120.605.00-6.50
4X1819/0.2351.170.3024X6X0.120.605.30-7.00
5X2219/0.150.750.3016X7X0120.605.00-6.50
5X2019/0.190.900.3016X7X0120.605.50-7.00
5X1819/0.2351.170.3024X6X0.120.606.00-7.50
6X2219/0.150.750.3016X8X0120.605.5-7.00
6X2019/0.190.900.3016X8X0120.606.00-7.50
6X1819/0.2351.170.3024X8X0.120.706.50-8.00
7X2219/0.150.750.3016X8X0120.706.00-7.50
7X2019/0.190.900.3016X8X0120.706.50-8.00
7X1819/0.2351.170.3024X10X0.120.807.00-8.50
Company Profile
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 2 UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 3
Our Product Range
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 4
Applications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 5
Global Clients
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 6
Industry Exhibitions
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 7
Certifications
UL20225 PFA Multi Core Wire with Nickel Plated Copper Braid for High Temperature Applications up to 250°C 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience. Headquartered in Shenzhen with production bases in Dongguan and Jingzhou, China.
  • What We Provide: High-temperature wires and cables, silicone tubing, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Payment options: T/T, L/C, PayPal, Western Union, Cash.
