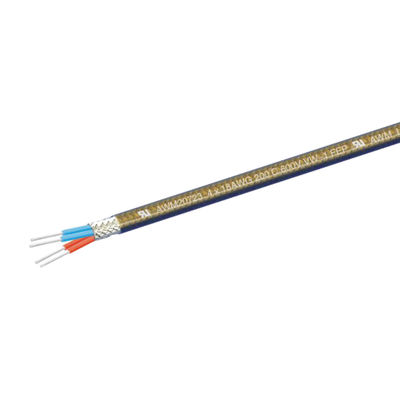

UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment

  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
  • UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment
Lieu d'origine Guangdong, Chine
Nom de marque MYSUN
Numéro de modèle UL20723
Quantité de commande min 3050

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Matériau conducteur Cuivre en conserve Options de diamètre 2X22, 2X18, 2X20, 3X18, 3X20, 3X22, 4X18, 4X20, 4X22, 5X18, 5X20, 5X22, 6X18, 6X20, 6X22, 7X18, 7X20
Matériel d'isolation Le FEP Tension nominale 600 V
Type de conducteur Solide Forme Rond
Cote de température 200℃ Taper Isolé
Exigences de base 2 conducteurs ou plus Fil FEP 16-4/0 AWG Construction de tresse 16X6X012, 16X7X012, 24X6X0,12, 24X8X0,12, 24X10X0,12
Épaisseur de la tresse 0,50 mm, 0,60 mm, 0,70 mm, 0,80 mm Épaisseur du vêtement extérieur 0,35 mm
Épaisseur nominale 0.50mm Taille AWG 22, 20, 18
Construction du conducteur 19/0,15 mm, 19/0,19 mm, 19/0,235 mm
Mettre en évidence

UL20723 FEP Wire

,

Multi Core FEP Wire

,

FEP Insulation Wire
Laisser un message

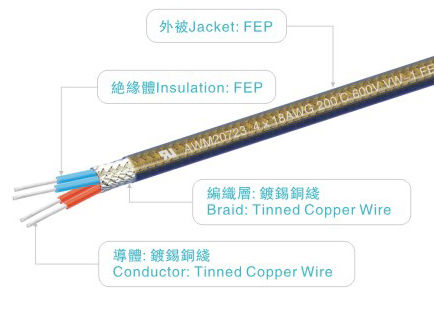

Description de produit
UL20723 FEP Multi Core Wire 600V 200°C Tinned Copper Braid 2X18 - 7X22 High Temperature FEP Wire for UAV Robot
Supplies Fortune 500 Companies | Top PFA Wire Supplier In China
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 0 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 1

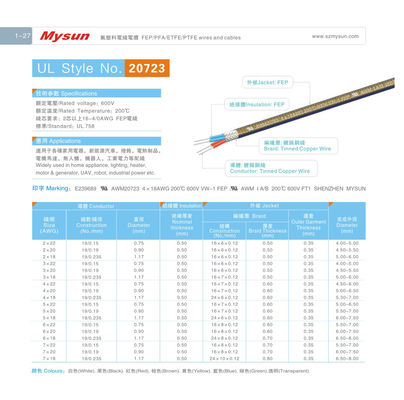

Specification
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Braid Outer Garment Thickness (mm) Diameter (mm)
2X2219/0.150.750.5016X6X0120.354.50-5.50
2X2019/0.190.900.5016X6X0120.355.00-6.00
2X1819/0.2351.170.5016X6X0120.355.30-6.30
3X2219/0.150.750.5016X6X0120.354.50-5.50
3X2019/0.190.900.5016X6X0120.355.00-6.00
3X1819/0.2351.170.5016X6X0120.355.30-6.30
4X2219/0.150.750.5016X7X0120.354.50-6.00
4X2019/0.190.900.5016X7X0120.355.00-6.50
4X1819/0.2351.170.5024X6X0.120.355.30-7.00
5X2219/0.150.750.5016X7X0120.355.00-6.50
5X2019/0.190.900.5016X7X0120.355.50-7.00
5X1819/0.2351.170.5024X6X0.120.356.00-7.50
6X2219/0.150.750.5016X8X0120.355.5-7.00
6X2019/0.190.900.5016X8X0120.356.00-7.50
6X1819/0.2351.170.5024X8X0.120.356.50-8.00
7X2219/0.150.750.5016X8X0120.356.00-7.50
7X2019/0.190.900.5016X8X0120.356.50-8.00
7X1819/0.2351.170.5024X10X0.120.357.00-8.50
Company Profile
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 2 UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 3
Our Products
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 4
Application
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 5
Our Overseas Clients
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 6
Exhibition
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 7
Certifications
UL20723 FEP Multi Core Wire with FEP Insulation for High Temperature Applications in UAV Robots and Industrial Equipment 8
FAQ
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarters is located in Shenzhen, Guangdong, China, with production bases in Dongguan, Guangdong and Jingzhou, Hubei, China.
2. What Can We Provide?
We provide high-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
3. Why Choose Us?
  • Free samples available
  • Competitive pricing
  • High quality standards
  • Customized services
4. What Certifications Do We Have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
5. What Services Can We Provide?
Accepted Delivery Terms:
FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU
Accepted Payment Currency:
USD, EUR, CNY
Accepted Payment Type:
T/T, L/C, PayPal, Western Union, Cash
